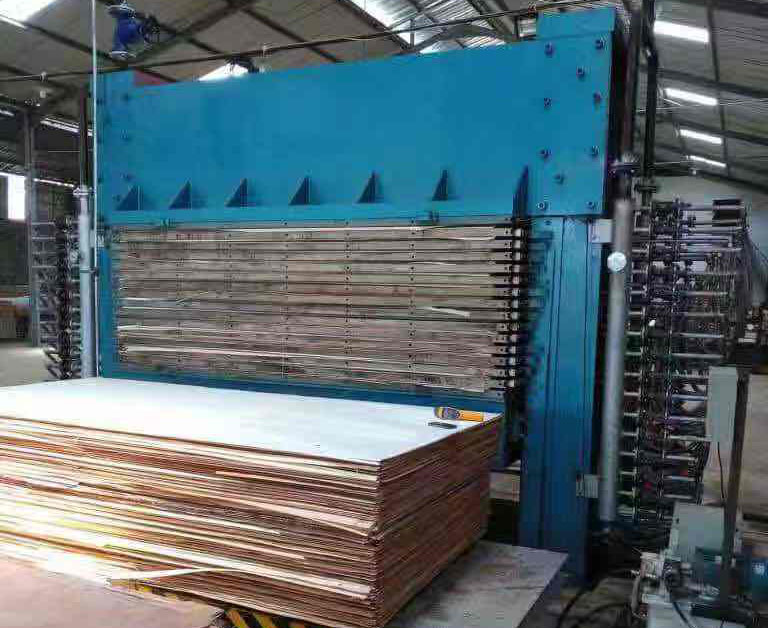

hot press machine for plywood

The hot press machine is used to bonding the plywood with heating system,hot press system and heat conduction system.

hot press machine

Main Futures

  • the main frame is made from good quality steel plate with reasonable design and high strength,so it can load huge pressure.
  • the system controlled by microcomputer with high automation,it’s easily to adjust,and has long time usage,the plate can close in short time and increase the production efficiency.
  • The steam system is double input,double outlet ,ensure the even temperature.

More Paramters

hot press machine parameters
total pressure 400T
Board feeding direction transverse
layers 1 layer
layer spacing 1800mm
work plate size 2700*1370mm
cylinder ⌀320mm*2pcs
compression resistance 25mpa
composite frame assemble
working methods full automatic
power 7.5kw/18.5kw
overall dimension 3550*1400*4100mm
weight 10T
Upper and bottom beam 800mm
thickness of the frame 30mm Q235
Middle Beam 400mm
