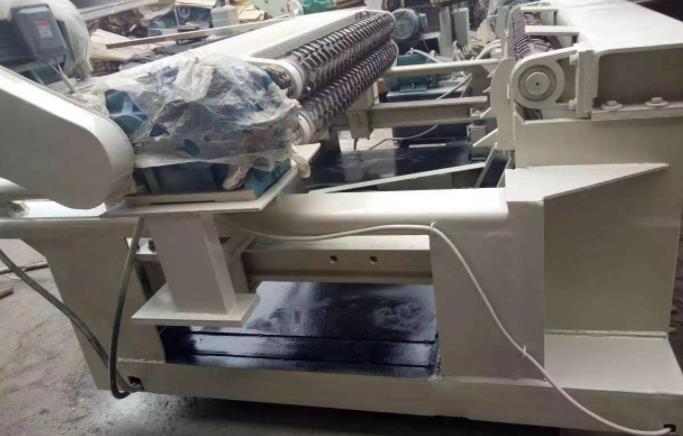

The bark peeling machine can remove the bark on the log and process it into a smooth rounded log. Such a smoothed bar after peeling can enter the rotary cutter for rotary cutting and ensure the consistency of the thickness of the rotary cutting.
|
Name |
Unit |
Parameter |
|
Length of peeling log |
mm |
970-1400mm |
|
Maxi peeling log diameter |
mm |
600mm |
|
Left core diameter |
mm |
80mm |
|
Peeling Thickness Range |
mm |
1.0mm-4.0mm |
|
Peeling output speed |
m/min |
constant speed 75m |
|
Roll Power |
KW |
Double roller Motor:7.5KW |
|
Single roller Motor:7.5KW |
|
Feed cylinder Motor:5.5KW |
|
Wood pulverizing Motor 11KW |
|
Reducer Model |
R87 |
Helical Gear reducer |
|
Size |
mm |
4000mm*1900mm*1500mm |
|
Weight |
KG |
4500KGS |
|
Production Efficiency |
8 hours |
200mm:80CBM |
|
300mm:100CBM |
|
400mm:150CBM |
500mm:200CBM
|
