The important parameter of the rotary peeling machinery is the thickness of the rotary peeling.The better the rotary peeling machine can evenly process the thickness of the single plate, and the thickness of the rotary peeling can also be flexibly adjusted by the control device.

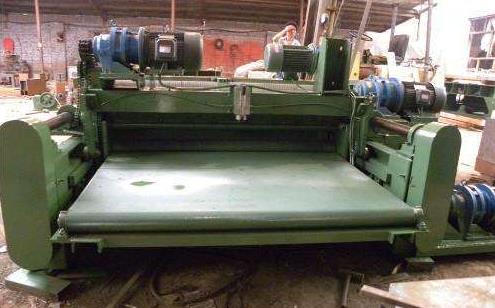

Lin Yi Guo Yu Machinery Co, ltd supply CNC rotary machine.These rotary peeling machines have a stable structure and can be used for wood, eucalyptus, maple, pine and other wood materials;
Lin Yi Guo Yu Machinery Co, ltd supply CNC rotary machine.These rotary peeling machines have a stable structure and can be used for wood, eucalyptus, maple, pine and other wood materials;
More Paramters
| Name | Unit | Parameter |
| Length of peeling log | mm | 970mm-1270mm-1300mm |
| Maxi peeling log diameter | mm | 500mm |
| Left core diameter | mm | 30mm |
| Peeling Thickness Range | mm | 0.8mm-8.0mm |
| Peeling output speed | m/min | constant speed60m、Adjust speed 60m-120m |
| Roll Power | KW | Double roller Motor:11KW |
| Single roller Motor:5.5KW*2 | ||
| Feed Motor:11KW Servo Motor | ||
| Shear Motor:2.2KW Servo Motor | ||
| Cot Motor:2.2KW AC Motor | ||
| Reducer Model | R87 | Helical gear reducer |
| Size | mm | 4300mm*1700mm*1600mm |
| Weight | KG | 6000KGS |
| Production Efficiency | 8 hours | eucalyputs 1.7mm:50CBM |
| eucalyputs 2.2mm:60CBM | ||
| eucalyputs 3.6mm:90CBM | ||
| eucalyputs 6.0mm:120CBM |
